Replacement: Preparing the intake camshaft

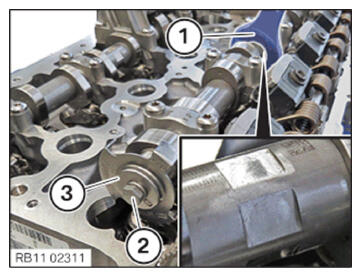

• Affix the intake camshaft with a standard open-end wrench (1)  .
• Loosen screw (2)  .
• Remove the camshaft sensor wheel (3)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

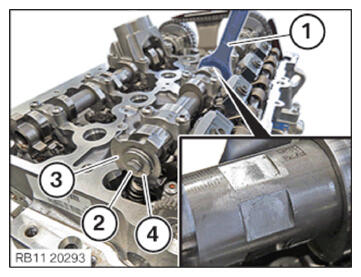

• Insert and install the camshaft sensor wheel (3)  .
• Ensure that the camshaft sensor wheel (3)  is correctly positioned on the guide pin (4)  .
• Affix the intake camshaft with an open-end wrench (1)  .
• Tighten down screw (2)  .

TIGHTENING TORQUES SPECIFICATION

Camshaft sensor wheel to intake camshaft
M6x16 Replace screw.	1. Tightening torque	5 Nm
	2. Angle of rotation	90°

Courtesy of BMW OF NORTH AMERICA, INC.
