Replacing engine oil pan: remount the oil-level sensor

NOTE: RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.

Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
Read and comply with user information on using the associated special tool 12 7 060.
Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
For additional information see: NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

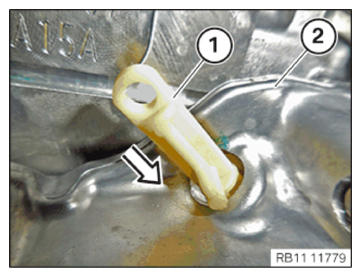

Guide the seal plug (1) out of the oil pan (2) in the arrow direction and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.

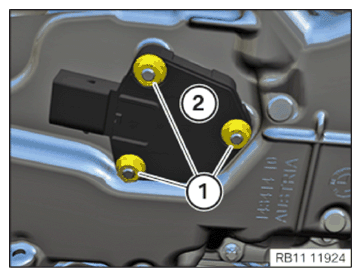

Release nuts (1).
Feed out and remove the oil-level sensor (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Replace O-ring (1).
Parts: O-ring

Courtesy of BMW OF NORTH AMERICA, INC.
Insert and install the oil-level sensor (2).
Tighten nuts (1).

Courtesy of BMW OF NORTH AMERICA, INC.

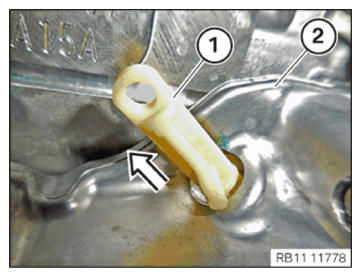

Guide the seal plug (1) into the oil pan (2) in the arrow direction and install it.

Courtesy of BMW OF NORTH AMERICA, INC.
