Exhaust System -- Repair (G42)
>>
18 12 Exhaust Silencer
>>
18 12 081 Replacing the controller drive for exhaust flap
>>
Installing the actuator for the exhaust flap
Installing the actuator for the exhaust flap

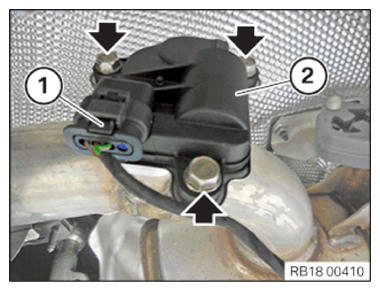

Feed in and install the actuator for the exhaust flap (2).
Tighten the screws (arrows).
TIGHTENING TORQUES SPECIFICATION
Controller drive exhaust flap to exhaust system
M6x16
Tightening torque
8.5 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
Connect connectors (1) and lock.
The connector (1) must engage audibly.
