Installing the front pipe

CAUTION: Component with heavy weight.
Injury hazard!

Note component's center of gravity.
Support component using a jack.
Secure component against falling off the jack.

CAUTION: Heavy component.
Heavy components can lead to injury or damage.

Remove and install heavy components with the aid of another person/other persons.

CAUTION: Grinding dust from grinding of components.
Hazardous to health!

Directly draw off the grinding dust.
Ensure adequate ventilation.
Conduct all work in appropriate personal protective equipment only.

NOTE: TECHNICAL INFORMATION
Check the exhaust system for tightness after installation.

NOTE: TECHNICAL INFORMATION
Mount the exhaust system in a de-energized state, following the tightening sequence from the rear silencer towards the exhaust manifold.

CAUTION: Shavings resulting from sawing or grinding components.
Injury hazard!

Conduct all work in appropriate personal protective equipment only.
Wear safety goggles and hand protection.

Courtesy of BMW OF NORTH AMERICA, INC.

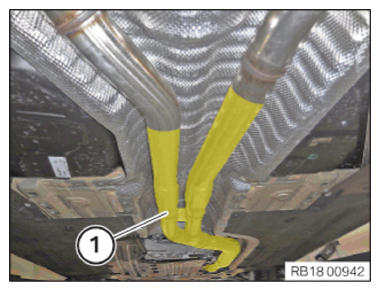

Open the weld seam (1) with a conventional tool.
Remove the circlip (2).
Replace circlip (2).
Parts: cl
Replace the front pipe (1).
Parts: Front pipe
Guide in the front silencer (1) with the assistance of another person and install.

Courtesy of BMW OF NORTH AMERICA, INC.

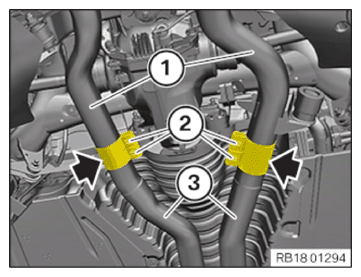

Connect the rear silencer (1) with the gripper clamps (arrows) to the front pipes (3).

Center the gripper clamps (arrows) and tighten the nuts (2).

TIGHTENING TORQUES SPECIFICATION

Clamp with partial replacement of exhaust system
Clamp	Tightening torque	45 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

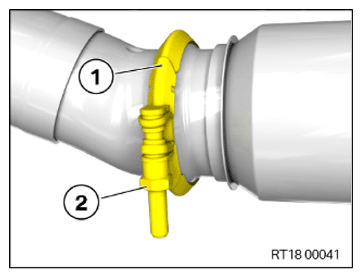

Replace nut (1).
Parts: Nut

Tighten nut (1).

TIGHTENING TORQUES SPECIFICATION

Front pipe/front silencer/gasoline particulate filter to the transmission holder
M8 Replace nut.	tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Variant with ribbon clamp:

Tighten the ribbon clamp (1).

TIGHTENING TORQUES SPECIFICATION

Exhaust system to catalytic converter
Ribbon clamp nut M8 Replace the ribbon clamp.	tightening torque	26 Nm
Ribbon clamp nut M10 Replace the ribbon clamp.	tightening torque	55 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Equipment specification with V-ribbon clip:
Replace V-band clamp.

Parts: V-band clamp

Unscrew the nut (1) and remove the sealing ring (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Bend all the sheet metal tabs, except those in the marked area, all around using a suitable tool.

Courtesy of BMW OF NORTH AMERICA, INC.
Mount the V-clip (1) on the sealing ring (2).
Make sure that the V-ribbon clip is (1) correctly positioned on the sealing ring (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Make sure that, after mounting, the V-ribbon clip is on the sheet metal tabs (marks).

Courtesy of BMW OF NORTH AMERICA, INC.
Connect the exhaust system (1) with the catalytic converter (2) (arrow) and position correctly.

Courtesy of BMW OF NORTH AMERICA, INC.
Make sure that V-clip (1) is fitted correctly.

Tighten down screw (2).

TIGHTENING TORQUES SPECIFICATION

V-ribbon clip to catalytic converter
V-ribbon clip Replace V-ribbon clip.	tightening torque	25 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING REINFORCEMENT STRUT .
Refer to INSTALLING TANK COVER ON LEFT AND RIGHT .
