Installing the engine oil cooler

• Replace the sealing rings (1) from the lines (2).

  Parts:  Sealing ring

  Courtesy of BMW OF NORTH AMERICA, INC.

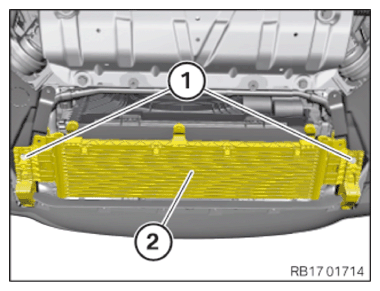

• Guide in and install the engine oil cooler (2).
• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATION



  Engine oil cooler on bumper bracket
  M6X25	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

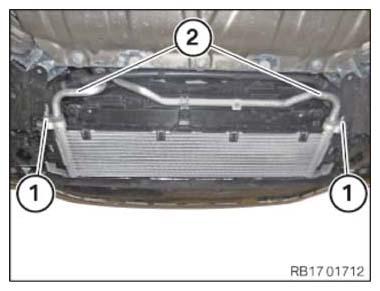

• Connect the lines (2).
• Tighten nuts (1).
  TIGHTENING TORQUE SPECIFICATION



  Lines on engine oil cooler
  Nut M6	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

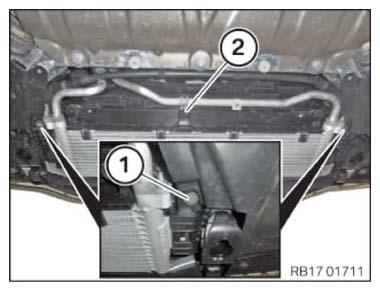

• Replace the rivet (1).

  Parts:  Rivet

• Install and rivet the damper (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screw (2).
  TIGHTENING TORQUE SPECIFICATION



  Line clip on engine oil cooler
  Hexagon screw for thermoplastic	tightening torque	3 Nm

• Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to CHECKING ENGINE OIL LEVEL .
