When replacing the auxiliary coolant radiator: Remount components

NOTE: Description is for right component only. The procedure on the left side is identical.

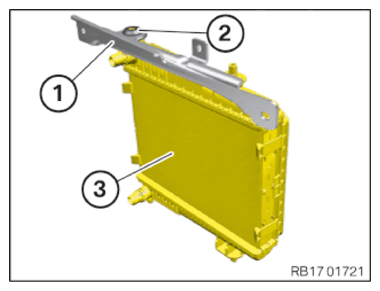

• Feed out and remove the bracket (1) with rubber mount (2) from the auxiliary coolant radiator (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

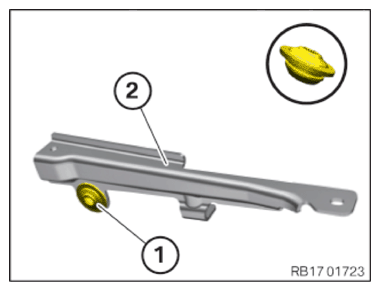

• Check the rubber mount (1) for correct fit on the holder (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace auxiliary coolant radiator (3).

  Parts:  Radiator

• Feed in and install the bracket (1) with rubber mount (2) at the auxiliary coolant radiator (3).
