Removing the external radiator on the right front
Preliminary work
- Refer to REMOVING FRONT RIGHT WHEEL .
- Refer to REMOVING THE LOWER RIGHT FRONT COVER .
- Refer to REMOVING THE FRONT RIGHT WHEEL ARCH COVER FRONT SECTION .
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
NOTE:
TECHNICAL INFORMATION
Immobilization period-long fill of coolant!
Do not reuse used coolant.
When replacing and removing components which rely on the corrosion protection effect of the coolant, it is essential to change the coolant. The cooling system must therefore be emptied and refilled.
In the case of other removal work involving the draining of part quantities of coolant, the coolant level must be topped up with new coolant.
Immobilization period-long fill of coolant!
Do not reuse used coolant.
When replacing and removing components which rely on the corrosion protection effect of the coolant, it is essential to change the coolant. The cooling system must therefore be emptied and refilled.
In the case of other removal work involving the draining of part quantities of coolant, the coolant level must be topped up with new coolant.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
NOTE:
TECHNICAL INFORMATION

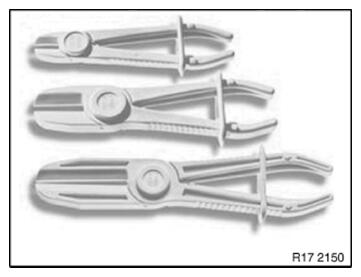

Use commercially available pinch-off tools to pinch off the coolant hoses.
Use commercially available pinch-off tools to pinch off the coolant hoses.
- Use commercially available pinch-off tools to pinch off the coolant hoses.NOTE: TECHNICAL INFORMATION
Only flexible hose pipes may be disconnected. - Version A:

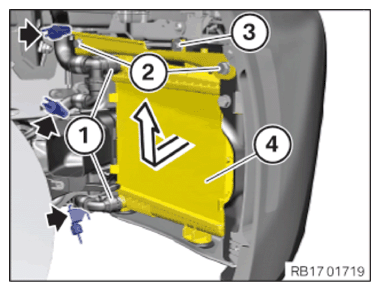

Clamp coolant lines (1) with standard disconnection tool (arrows).
Unlock and release coolant line (1).
Catch and dispose of escaping coolant.
Loosen screws (2).
Loosen screw (3).
Feed the external radiator (4) in arrow direction out from the lower rubber mounts and remove it.
Catch and dispose of escaping coolant.
NOTE: TECHNICAL INFORMATION
Only flexible hose pipes may be disconnected. - Version B:

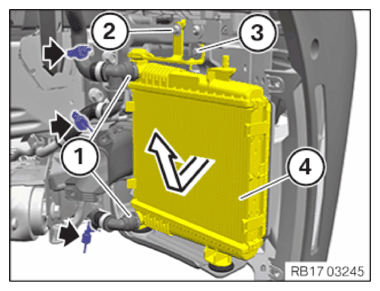

Clamp coolant lines (1) with standard disconnection tool (arrows).
Unlock and release coolant line (1).
Catch and dispose of escaping coolant.
Loosen screw (2).
Loosen screw (3).
Feed the external radiator (4) in arrow direction out from the lower rubber mounts and remove it.
Catch and dispose of escaping coolant.
