Installing the right front external radiator

• Check the rubber mount (1) for correct fit on the holder (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Check the rubber mount (1) for correct fit.

  Courtesy of BMW OF NORTH AMERICA, INC.

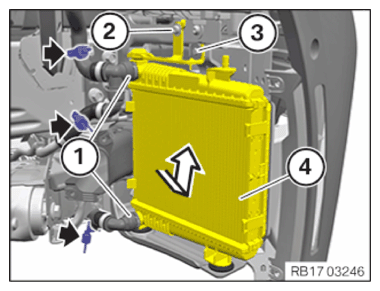

• Version A:
• Guide in the external radiator (4) into the bottom rubber mounts in the direction of the arrow and install it.
• Tighten down screw (3).
  TIGHTENING TORQUE SPECIFICATION



  Air duct for the external radiator on the holder
  Screw	tightening torque	2.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screws (2).
  TIGHTENING TORQUE SPECIFICATION



  Cross-member on crash reinforcement
  Screw	tightening torque	19 Nm

• Connect and lock the coolant lines (1).

  The coolant lines (1) must engage audibly.

• Remove the standard disconnection tool (arrows).

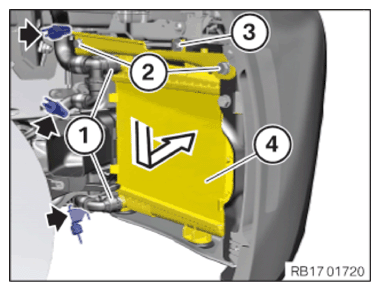

• Version B:
• Guide in the external radiator (4) into the bottom rubber mounts in the direction of the arrow and install it.
• Tighten down screw (3).
  TIGHTENING TORQUE SPECIFICATION



  Air duct for the external radiator on the holder
  Screw	tightening torque	2.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screw (2).
  TIGHTENING TORQUE SPECIFICATION



  External radiator to holder
  M6	Tightening torque	11.8 Nm

• Connect and lock the coolant lines (1).

  The coolant lines (1) must engage audibly.

• Remove the standard disconnection tool (arrows).

Follow-up work

• Refer to INSTALLING THE FRONT SECTION OF THE FRONT RIGHT WHEEL ARCH COVER .
• Refer to INSTALLING THE COVER AT THE BOTTOM FRONT RIGHT .
• Refer to INSTALLING THE FRONT RIGHT WHEEL .
• Refer to FILLING AND VENTING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
