Removing The Right Engine Compartment Lid Hinge

Precondition

• Vehicle doesn't have active pedestrian protection.

Preliminary work

• Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
• Refer to DEACTIVATE ELECTRICAL SYSTEM .
• Refer to REMOVE HOOD .
• Refer to REMOVE THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
• Refer to REMOVE THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
• Refer to REMOVING LEFT AND RIGHT WIPER ARM .
• Refer to REMOVE WINDSHIELD PANEL COVER .
• Refer to REMOVE THE WATER DRAIN CHANNEL ON THE RIGHT .
• Refer to 51 23 400 REMOVING AND INSTALLING/REPLACING THE LEFT OR RIGHT ACTUATOR

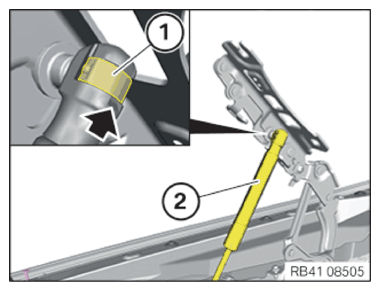

• Place screwdriver in recess (arrow).
• Use screwdriver to raise clamp (1) slightly and detach gas pressure spring (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unclip the hose pipe (1) from the hinge (arrows) and put aside.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Release the screws (1) and remove the hood hinge (2).

  Courtesy of BMW OF NORTH AMERICA, INC.
