Installing The Front Holder

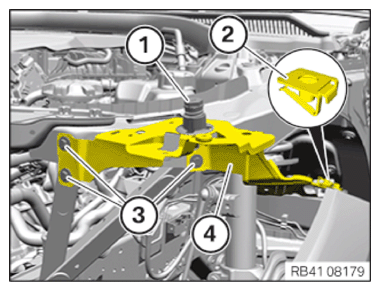

Position holder (4) and tighten the screws (3) .

TIGHTENING TORQUE SPECIFICATION

Side panel holder to body
M6 screw	tightening torque	8 Nm

Attach the adjustment plate (1) and sheet metal nuts (2) on the holder (4) .

Courtesy of BMW OF NORTH AMERICA, INC.

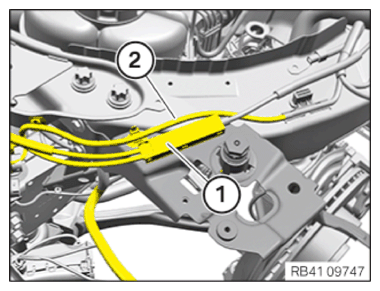

Clip the Bowden cable (1) and the wiring harness (2) into the holder.

Courtesy of BMW OF NORTH AMERICA, INC.
