Supplying The New Parts Required
NOTE:
TECHNICAL INFORMATION
For additional information see: 41 00... Repair method for repair stage 2
- Observe the procedure for repair stage 2.
For additional information see: 41 00... Repair method for repair stage 2
- For information about stripping and rebuilding operations, refer to the surrounding text in the AIR. See the FRU number.
Preliminary work
Follow-up work

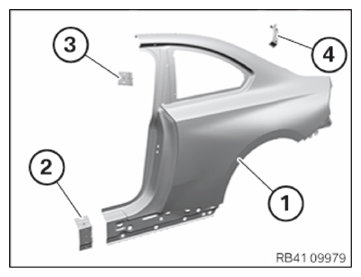

- Prepare the following new parts:
Rear wall (1)
Reinforcement plate, door sill (2)
B-pillar reinforcement plate (3)
Reinforcement plate, C-pillar (4)
Plastic nut
