Removing The Rear Left Side Panel

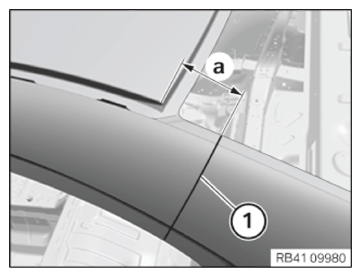

Mark the separating cut (1) at the C-pillar according to the dimensions and cut. Disconnect only the outer panel.
Dimension (a) = 95 mm from the corner point of the roof outer skin
Compare position of severance cut with reinforcement plate.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Determination of separating cut using a template

Determine position of the separating cut in addition to the dimensions with the aid of a template (1).

Courtesy of BMW OF NORTH AMERICA, INC.

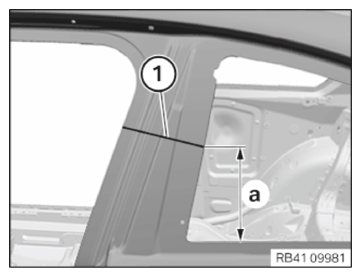

Mark the separating cut (1) on the B-pillar according to dimensions and cut. Disconnect only the outer panel.
Dimension (a) = 150 mm
Compare position of severance cut with reinforcement plate.

Courtesy of BMW OF NORTH AMERICA, INC.

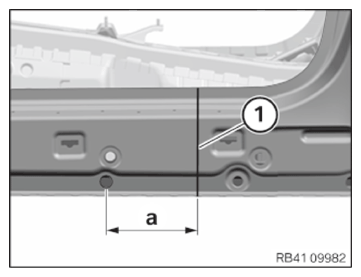

Mark a separating cut (1) on the door sill according to dimension and disconnect it. Disconnect only the outer panel.
Dimension (a) = 184 mm from the center point of the hole with Ø 25 mm.
Compare position of severance cut with reinforcement plate.

Courtesy of BMW OF NORTH AMERICA, INC.

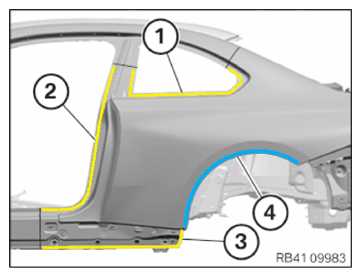

Release welded connections in areas (1) to (3).

NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Loosening bonded folded joints

Detach the folded bonded joints in area (4).

Courtesy of BMW OF NORTH AMERICA, INC.

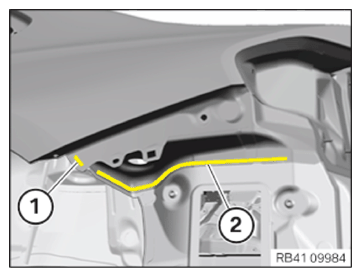

Release welded connections in areas (1) and (2).

Courtesy of BMW OF NORTH AMERICA, INC.

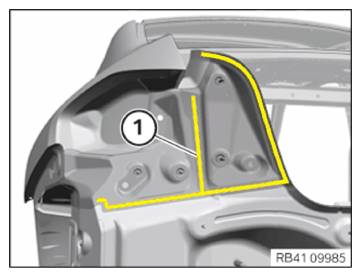

Open the welded connections in area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

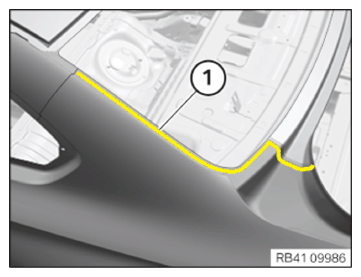

Open welded connections in area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

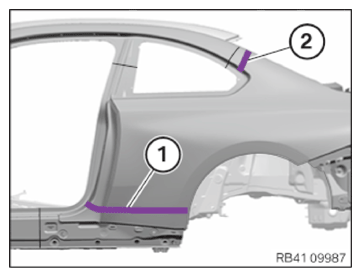

Release the side panel from the cavity sealings (1) and (2) and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.
