Installing The Rear Left Side Panel

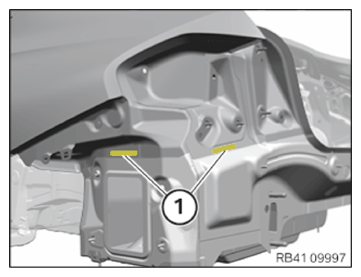

Install reinforcement plate (1) and tack by welding.

Courtesy of BMW OF NORTH AMERICA, INC.
Apply adhesive to the bonding surfaces.
ADHESIVE SPECIFICATION

Body adhesive K5 195 ml 83195A59935

NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Installation of cavity sealing (expanded)

Apply sealant to cavity sealings.
CONSUMABLE SPECIFICATION

Sealant D2 290 ml83425A547B9

Install the side panel with the help of a second person.
During installation, ensure that sufficient adhesive has been applied to all bonding surfaces.
Align the side panel in the areas of the separating cut and attach it using locking pliers.
Tighten the plastic nuts of the reinforcement plates.
CONSUMABLE SPECIFICATION

Plastic nut ø18 mm 51161943122

CONSUMABLE SPECIFICATION

Plastic nut

ø22 mm

07147169847

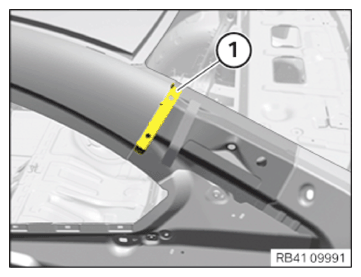

Rivet the side panel in area (1) with blind rivets.
CONSUMABLE SPECIFICATION

Blind rivet N3
Ø 4 mm; clamping area 1-3 mm 83190301421

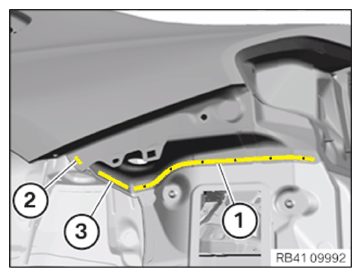

Rivet the side panel in the areas (2) and (3) with punch rivets.

Area	Description	Number
2	N4	1
3	N4	2

Courtesy of BMW OF NORTH AMERICA, INC.

CONSUMABLE SPECIFICATION

Punch rivet N4
Ø 3 mm; 4 mm long

83192457307

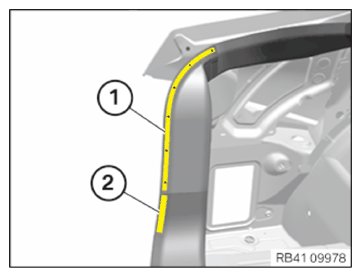

Rivet the side panel in the areas (1) and (2) with blind rivets N3.

Courtesy of BMW OF NORTH AMERICA, INC.

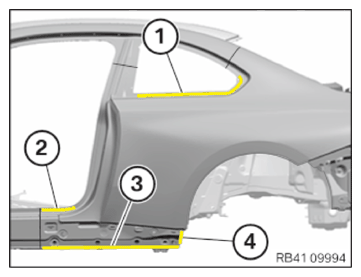

Install punch rivets in the areas (1) to (4).

To do this, note the welding extent for areas (1) and (2) (see overview of the joining method).

Courtesy of BMW OF NORTH AMERICA, INC.

CONSUMABLE SPECIFICATION

Punch rivet N5
Ø 5 mm; 5 mm long

83192158079

In the area (1), install 6 x punch rivets N4.
In the area (2), install 2 x punch rivets N5.

Courtesy of BMW OF NORTH AMERICA, INC.

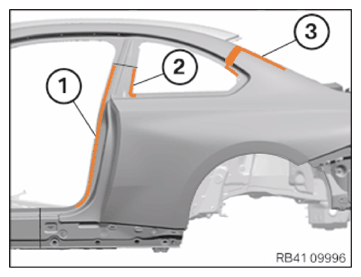

Install punch rivets in the areas (1) and (2).

Area (3) = welding method for the reinforcement of the C-pillar.

Area	Description	Number
1	N4	3
2	N4	3

Courtesy of BMW OF NORTH AMERICA, INC.

Also apply adhesive (2) to the outer wheel arch section (3).
(1) = side panel wheel arch

Courtesy of BMW OF NORTH AMERICA, INC.
Flange the edge of wheel arch (3) of the side panel flush to the outer wheel arch section.
Do not bead with sharp edges as the crimping edge could tear.
Fill crimping edge fully with adhesive.
Dimension (a) = 5 mm
1. adhesive
2. rear quarter panel
Seal the new part with sealant in the same way as for standard production.
Seal with sealant in the area (3) according to the standard.

Courtesy of BMW OF NORTH AMERICA, INC.

CONSUMABLE SPECIFICATION

Sealant D2

290 ml83425A547B9

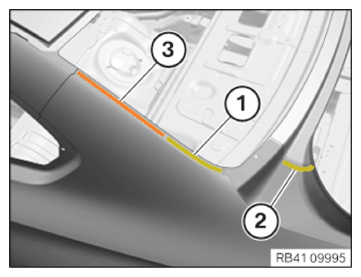

Weld areas (1) to (3).
Avoid excessive heat input on the adjacent adhesive areas.

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the EMC screw

Drill the hole with a diameter of 4.2 mm after the adhesive completely hardens.
Screw in the EMC screw.
CONSUMABLE SPECIFICATION

screw
EMC screw, SF Plus, M5x15 83190301639

Seal the EMC screw with the sealant.
CONSUMABLE SPECIFICATION

Sealant D2 290 ml83425A547B9
