Removing The Tail Panel
NOTE:
Perform the steps on the left and right side.

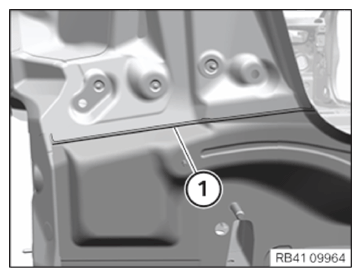

- Make a coarse cut (1) as shown just below the component edge of the tail light mount.
Fully cut through the tail panel.

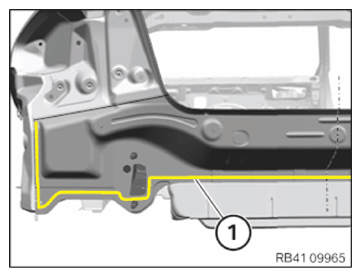

- Loosen the welded connections in the area (1) and remove the tail panel.

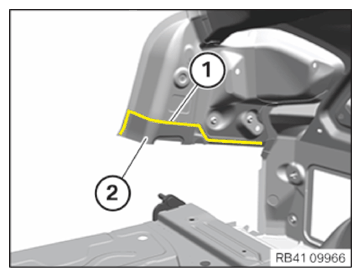

- Release the welded connections in the area (1) and remove the section (2).

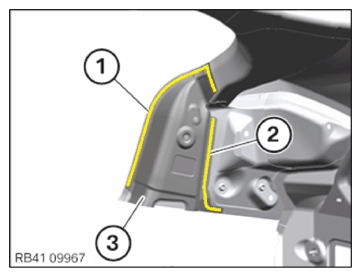

- Release the welded connections in the areas (1) and (2) and remove the section (3).

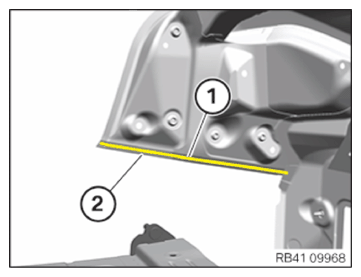

- Release the welded connections in the area (1) and remove the section (2).
