Installing The Tail Panel

Precondition

Bonding surfaces are cleaned.

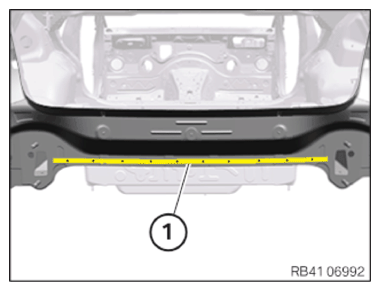

• Apply adhesive to bonding surfaces.

  ADHESIVE SPECIFICATION

  Body adhesive K5

  195 ml

  83195A59935

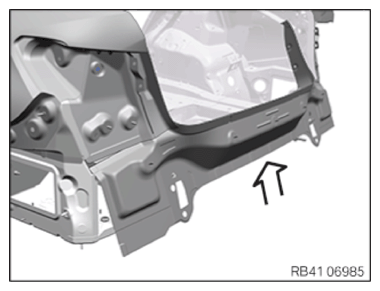

• Install the tail panel.

  Courtesy of BMW OF NORTH AMERICA, INC.

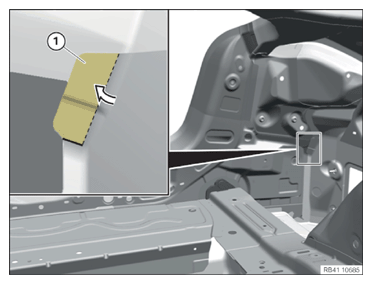

• Tie back sheet metal cutout (1).
• In area (1), set 2 bores Ø 4.2 mm for the blind rivet.

  Courtesy of BMW OF NORTH AMERICA, INC.

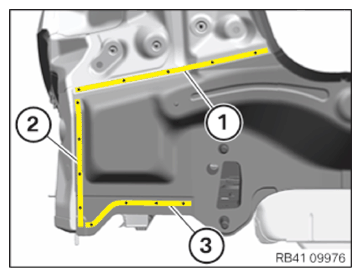

• Fix the new part in areas (1) to (3) with blind rivets N3.

  CONSUMABLE SPECIFICATION

  Blind rivet N3  Ø 4 mm; clamping area 1-3 mm

  83190301421

  Courtesy of BMW OF NORTH AMERICA, INC.

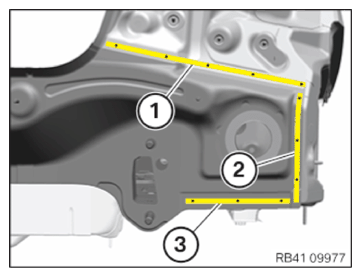

• Rivet the new part in the areas (1) to (3) with blind rivets.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Fix the new part in the areas (1) with blind rivets.

  Courtesy of BMW OF NORTH AMERICA, INC.

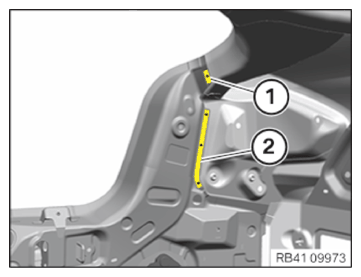

• Set 6 x punch rivets N4 in area (1).

  CONSUMABLE SPECIFICATION

  Punch rivet N4  Ø 3 mm; 4 mm long

  83192457307

• Set 2 x punch rivets N5 from the outer side in area (2).

  CONSUMABLE SPECIFICATION

  Punch rivet N5  Ø 5 mm; 5 mm long

  83192158079

  Courtesy of BMW OF NORTH AMERICA, INC.

• Set 10 x punch rivets N5 in area (1).

  Note the three-sheet connection and the setting direction of the punch rivets: Place the punch rivets from inside to outside.

  Courtesy of BMW OF NORTH AMERICA, INC.

Installing the EMC screw

• Drill a hole with a diameter of 4.2 mm.

  In the case of glued connections, only drill the hole after the adhesive has fully hardened.

• Screw in the EMC screw.

  CONSUMABLE SPECIFICATION

  EMC screw

  SF Plus M5x15

  83190301639

• Seal the EMC screw with the sealant.

  CONSUMABLE SPECIFICATION

  Sealant D1 (seam sealing)

  310 ml

  83425A547B4

• Press the tail panel in area (1) and remove the emerging adhesive.
• Install the support for the bumper cover until the adhesive has hardened.
• Install 3 EMC screws in areas (2) after the adhesive has hardened.

  Courtesy of BMW OF NORTH AMERICA, INC.

CONSUMABLE SPECIFICATION

screw  EMC screw, SF Plus, M5x15

83190301639
