Removing Tail Panel Outer Section

NOTE: Perform the steps on the left and right side.

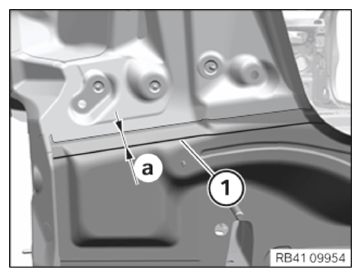

Mark severance cut (1) in accordance with dimension and disconnect. Disconnect only the outer panel.
Dimension a = approx. 20 mm below the component edge of the tail light mount.

NOTE: New part is installed in area of separating cut.

Courtesy of BMW OF NORTH AMERICA, INC.

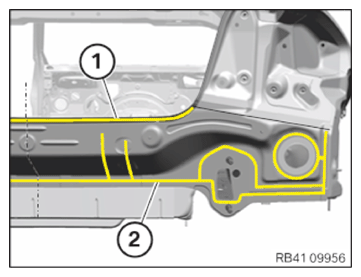

Open welded connections in areas (1) and (2).

Courtesy of BMW OF NORTH AMERICA, INC.

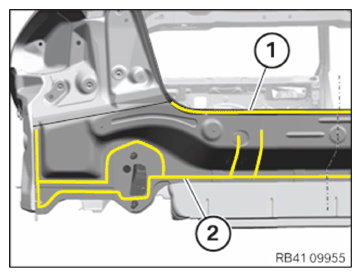

Release the welded connections in areas (1) and (2) and remove the tail panel outer section.

Courtesy of BMW OF NORTH AMERICA, INC.
