Supplying The New Parts Required
Precondition
- Vehicle is fixed on straightening bench.
NOTE:
TECHNICAL INFORMATION
For additional information see: 41 00... Repair method for repair stage 3
- Observe the procedure for repair stage 3.
For additional information see: 41 00... Repair method for repair stage 3
- For information about stripping and rebuilding operations, refer to the surrounding text in the AIR. See the FRU number.
Preliminary work
Follow-up work

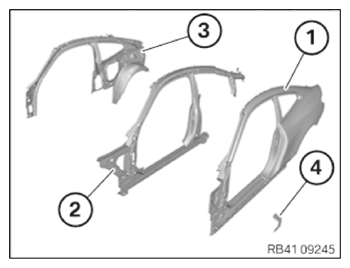

- Prepare the following new parts
:
Side frame, outer (1)
Side frame, center (2)
Side frame, inner (3)
Shaped part of the B-pillar, outer
Shaped part of the B-pillar, inner
NOTE:
TECHNICAL INFORMATION
