Preparing New Part

Carry out the severance cuts on the new parts according to the severance cut on the vehicle.
Remove unnecessary components from new part.
Adjust new parts with an alignment bracket or a universal fixture and secure.

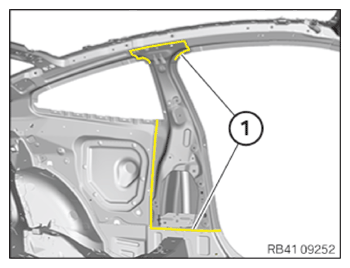

Prepare areas (1) for joining by welding.

Courtesy of BMW OF NORTH AMERICA, INC.

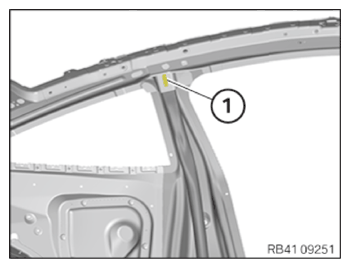

Prepare areas (1) for joining by welding.

Courtesy of BMW OF NORTH AMERICA, INC.

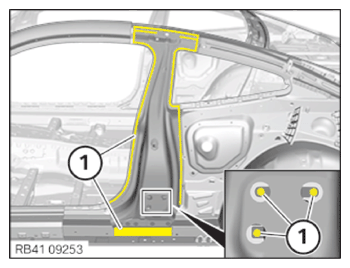

Prepare areas (1) for joining by welding.

Courtesy of BMW OF NORTH AMERICA, INC.
Additional steps when installing the side panel:
Mark and perform the separating cuts on the side panel new part in the roof frame area in accordance with separating cuts on the vehicle.

NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Welding in reinforcement plates (sheet steel)

Make a reinforcement plate for the separating cut on the roof frame.
Adjust the side panel new part.

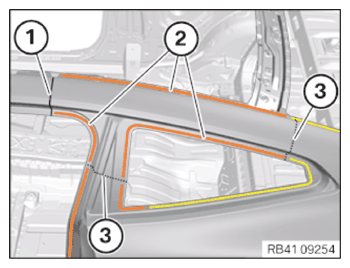

Prepare the separating cut (1), the reinforcement plate and the (2) areas for joining by welding.
NOTE: The original separating cuts (3) are not necessary if the side panel is replaced.

Courtesy of BMW OF NORTH AMERICA, INC.
Additional procedures for the new part preparation process of the side panel can be found in the repair instructions "Replacing the rear quarter panel".
