Preparing New Part

Mark severance cuts on new part in accordance with severance cuts on vehicle and cut.

NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Welding in reinforcement plates (sheet steel)

Prepare reinforcement plates at severance cuts.
Fit in new part.

NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Spot-weld bonding steel components

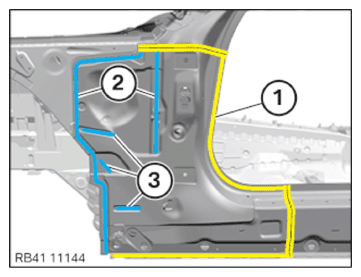

Prepare new part in the areas (1) and (2) for joining by welding.
In areas (2), observe the procedure when replacing spot-welded adhesive joints for series production.
In the areas (3), prepare for joining by bonding method.
Prepare bonding surfaces.

Courtesy of BMW OF NORTH AMERICA, INC.

Preparing the steel surface (used part and new part) for non-structural adhesive bond

Do not sand the bonding surface.
Do not sand the bonding surface down to the bare metal.
Clean coarse dirt from the bonding surfaces.
CONSUMABLE SPECIFICATION

Cleaning agent R2 500 ml 83190417324

Clean bonding surface. Adhere to the air drying time of 2 min!
CONSUMABLE SPECIFICATION

Cleaning agent R1 100 ml, Bottle 83192211217
