Install The Outer Section Of The A-Pillar

NOTE: TECHNICAL INFORMATION
Use only approved spot welder for repair.
For additional information see: 41 00... Workshop equipment

NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Installation of cavity sealing (expanded)

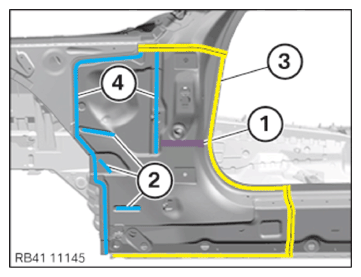

Apply sealant D2 to the cavity sealing (1).
CONSUMABLE SPECIFICATION

Sealant D2 290 ml83425A547B9

Apply adhesive K5 to the bonding surfaces (2).

Courtesy of BMW OF NORTH AMERICA, INC.

ADHESIVE SPECIFICATION

Body adhesive K5

50 ml

83192158654

Install the new part and the reinforcement plates.
Weld the new part and the reinforcement plates in areas (3) and (4) according to the new part preparation process.

Replacing the coarse thread bolt and threaded weld bolt (steel surface)

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Renew the coarse thread bolt (1) and the threaded weld bolt (2).
Parts: Coarse thread bolt, threaded weld bolt

Take the number and position from the component to be replaced or the add-ons.
Weld coarse thread bolt (1) and threaded weld bolt (2) onto the new part.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work
