Removing The Connection Between The Engine Mount And The Side Frame

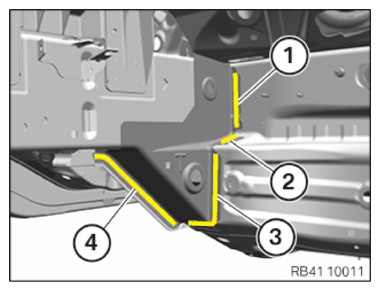

Release welded connections in areas (1) to (4).
Partly release the welded connections with the file belt sander.

Courtesy of BMW OF NORTH AMERICA, INC.

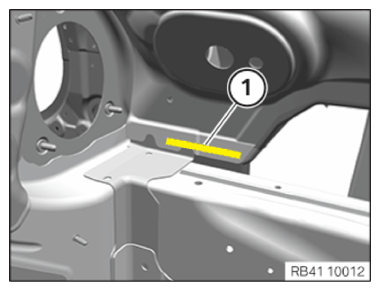

Open welded connections in area (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Unscrew the self-tapping screws in the areas (1).

NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Releasing bonded connections

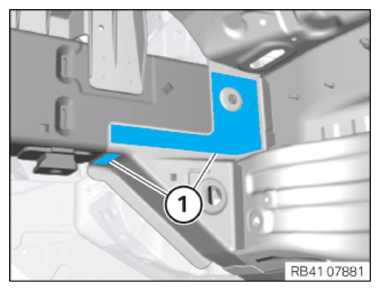

Heat and detach bonded connections in the areas (1) and remove the connecting plate.

Courtesy of BMW OF NORTH AMERICA, INC.
Make rough separating cuts (1) and (2) as shown.

Courtesy of BMW OF NORTH AMERICA, INC.

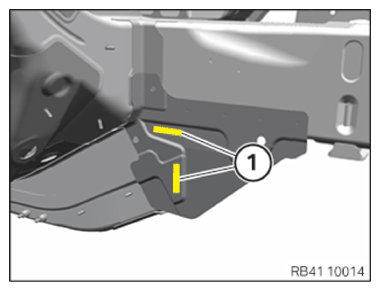

Release the welded connections in areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.

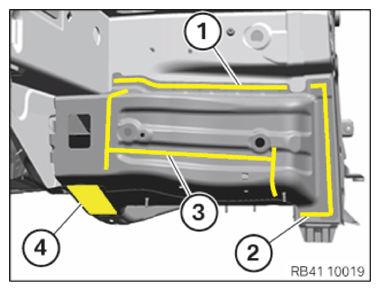

Release welded connections in areas (1) to (4).

Courtesy of BMW OF NORTH AMERICA, INC.

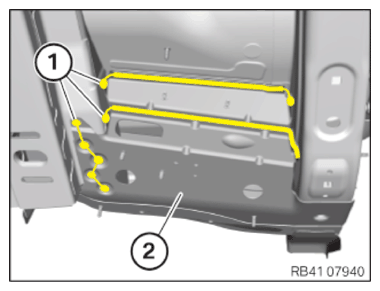

Release the welded connections in areas (1) and remove the connecting plate (2).

Courtesy of BMW OF NORTH AMERICA, INC.

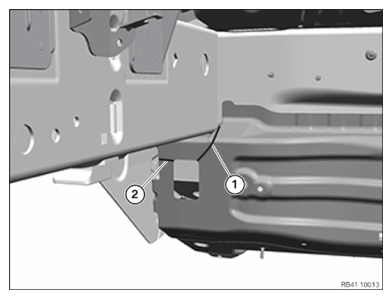

Heat and release the bonded connection in area (1).
Remove the section (2).

Courtesy of BMW OF NORTH AMERICA, INC.

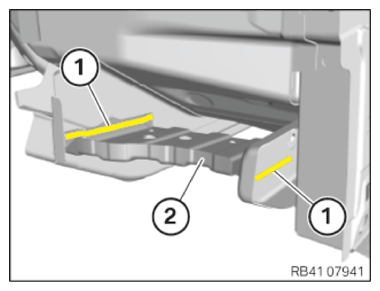

Release the welded connections in areas (1) and remove the reinforcement plate (2).

Courtesy of BMW OF NORTH AMERICA, INC.
