Preparing New Part

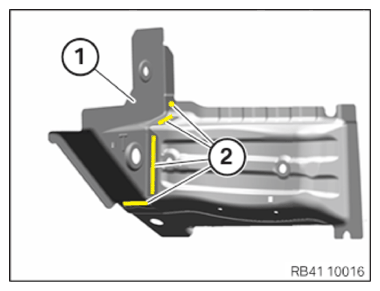

• NOTE: The joint plate (1) is used and installed as a separate component.

  Release the welded connections in the areas (2) and remove the joint plate (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

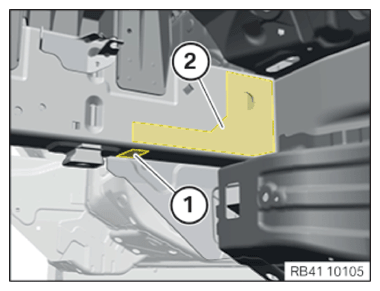

• Adjust the reinforcement plate (2) and prepare to join by welding in the areas (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

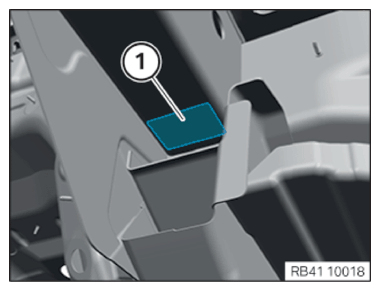

• Remove the adhesive residue on the bonding surface (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Adjust the connecting plate and prepare for joining by welding in areas (1) to (4).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Prepare the areas (1) and (2) for joining by welding.

  Observe the spot-welded adhesive joints of the overlying panel in the area (2) with the floor panel.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Remove adhesive residues on the bonding surfaces (1) and (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Adjust the joint plate and prepare in areas (1) for a structural adhesive bonding with blind rivets.

• Transfer the hole pattern of the self-tapping screws in the engine mount onto the new part in areas (1). Drill holes with Ø 6.8 mm.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Prepare areas (1) to (4) for joining by welding.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Prepare the area (1) for joining by welding.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Prepare areas (1) for joining by welding.

  Courtesy of BMW OF NORTH AMERICA, INC.

Replacing the coarse thread bolt and threaded weld bolt (steel surface)

• Renew the coarse thread bolt (1) and the threaded weld bolt (2).

  Parts:  Coarse thread bolt, threaded weld bolt

  Take the number and position from the component to be replaced or the add-ons.

• Weld coarse thread bolt (1) and threaded weld bolt (2) onto the new part.

  Courtesy of BMW OF NORTH AMERICA, INC.

Check ground pins and replace if necessary

• Check the ground pins (1) for stability and renew if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Prepare the bonding surface (1) for a structural adhesive bonding for steel surface.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Prepare the bonding surfaces (1) and (2) for a structural adhesive bonding for steel surface.

  Courtesy of BMW OF NORTH AMERICA, INC.

Prepare the steel surface (used part and new part) for structural adhesive bonding

• Remove coarse contamination from the bonding surfaces using solvent cleaner R2.

  CONSUMABLE SPECIFICATION

  Cleaning agent R2

  500 ml

  83190417324

• Clean the bonding surfaces using solvent cleaner R1.

  CONSUMABLE SPECIFICATION

  Cleaning agent R1

  100 ml, Bottle

  83192211217

• Grind the bonding surface down to the bare metal.
• Clean the bonding surface with cleaning agent R1.

  CONSUMABLE SPECIFICATION

  Cleaning agent R1

  100 ml, Bottle

  83192211217

• Prepare the bonding surface (1) for a structural adhesive bonding for aluminum surface.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Prepare the bonding surfaces (1) and (2) for a structural adhesive bonding for aluminum surface.

  Courtesy of BMW OF NORTH AMERICA, INC.

Preparing the aluminum surface (used part) for bonding

• Remove coarse contamination from the bonding surfaces using solvent cleaner R2.

  CONSUMABLE SPECIFICATION

  Cleaning agent R2

  500 ml

  83190417324

• Clean the bonding surfaces using solvent cleaner R1.

  CONSUMABLE SPECIFICATION

  Cleaning agent R1

  100 ml, Bottle

  83192211217

• Clear bonding surfaces from oxide layers and/or paint using an stainless-steel wire brush or sandpaper with 120 grain.

  The surface must be metallically bright.

• Clean the bonding surfaces using solvent cleaner R1.

  CONSUMABLE SPECIFICATION

  Cleaning agent R1

  100 ml, Bottle

  83192211217

• Allow cleaned surfaces to dry for approximately 5 min.

  Bonding surfaces must be completely dry.
