Supplying The New Parts Required

NOTE: TECHNICAL INFORMATION

For additional information see: 41 00... Repair method for repair stage 2

For information about stripping and rebuilding operations, refer to the surrounding text in the AIR. See the FRU number.

Preliminary work

Follow-up work

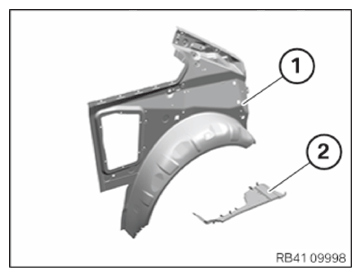

Prepare the following new parts :
Rear left outer wheel arch section (1)

Shaped part B-pillar, outer bottom (2)

NOTE: TECHNICAL INFORMATION

Courtesy of BMW OF NORTH AMERICA, INC.

Have the following consumables ready:

Material	Quantity
Adhesive K5 (50 ml)	1
Blind rivet N3	15
Coarse thread bolt	5
Cleaning agent R1	1
Cleaning agent R2	1
Sealing compound D2
Cavity protection wax remover
