Installing The Rear Outer Wheel Arch Section

NOTE: TECHNICAL INFORMATION
When installing the new part, make sure that all bonding surfaces have sufficient adhesive.

Pre-clean the bonding surfaces on vehicle and on new part.
CONSUMABLE SPECIFICATION

Cleaning agent R2 500 ml 83190417324

Clean the bonding surfaces on the new part and on the vehicle.
CONSUMABLE SPECIFICATION

Cleaning agent R1 100 ml, Bottle 83192211217

Apply adhesive to bonding surfaces.
ADHESIVE SPECIFICATION

Body adhesive K5 50 ml 83192158654

Install new part.

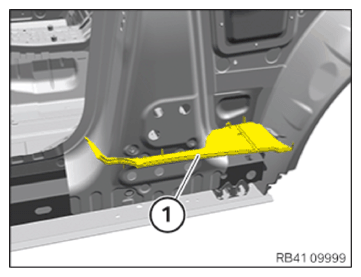

Rivet the new part in area (1) with blind rivets.
CONSUMABLE SPECIFICATION

Blind rivet N3
Ø 4 mm; clamping area 1-3 mm 83190301421

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Installation of a cavity sealing (not expanding)

Apply the sealant onto the new cavity sealing (1). Install cavity sealing (1).
CONSUMABLE SPECIFICATION

Sealant D2 290 ml83425A547B9

Courtesy of BMW OF NORTH AMERICA, INC.
