Supplying The New Parts Required
NOTE:
TECHNICAL INFORMATION
For additional information see: 41 00... Repair method for repair stage 3
- Observe the procedure for repair stage 3.
For additional information see: 41 00... Repair method for repair stage 3
- For information about stripping and rebuilding operations, refer to the surrounding text in the AIR. See the FRU number.
Preliminary work
Follow-up work

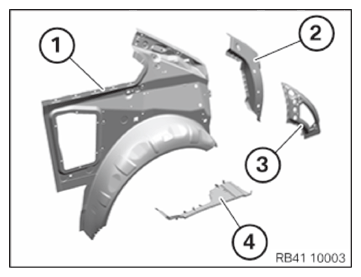

- Prepare the following new parts
:
Rear left outer wheel arch section (1)
Reinforcement (2) of the C-pillar
Retaining strap (3) of the C-pillar
Shaped part B-pillar, outer bottom (4)
