Supplying The New Parts Required
Precondition
- Vehicle is secured on the straightening bench.
NOTE:
TECHNICAL INFORMATION
For additional information see: 41 00... Repair method for repair stage 3
- Observe the procedure for repair stage 3.
For additional information see: 41 00... Repair method for repair stage 3
- For information about stripping and rebuilding operations, refer to the surrounding text in the AIR. See the FRU number.
Preliminary work
Follow-up work

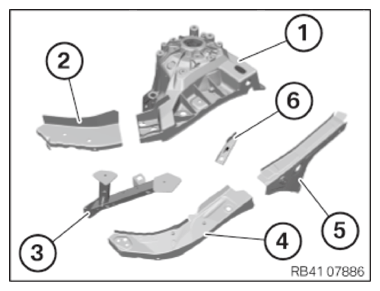

- Prepare the following new parts
:
Front spring support (1)
Carrier support for lower wheel arch (2)
Carrier support brace (3)
Carrier support, wheel arch, front (4)
Extension of the wheel well carrier support (5)
Holder of brake hose (6)
Support bracket shaped part
NOTE:
TECHNICAL INFORMATION
