Remove Wheel Arch

NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Releasing bonded connections

NOTE: TECHNICAL INFORMATION
For additional information see: Open riveted joints (41 00).

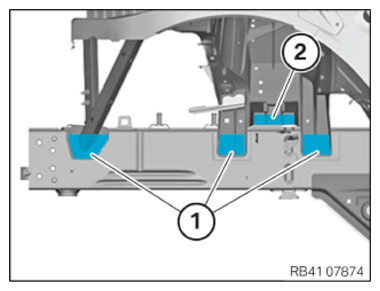

Release the self-tapping screws in the areas (1) and rivet connectors in the area (2).
Heat the bonded connections in the areas (1) and (2) and release them. Do not damage the aluminum engine mount in the process!

Courtesy of BMW OF NORTH AMERICA, INC.

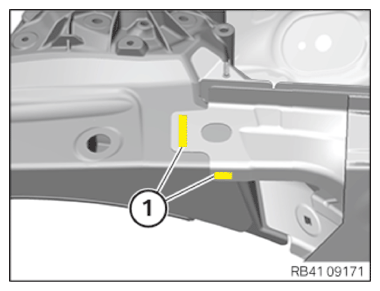

Release the rivet connectors in the area (1).

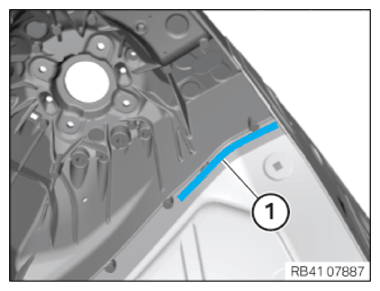

Heat the bonded connection in the area (1) and release it.

Courtesy of BMW OF NORTH AMERICA, INC.

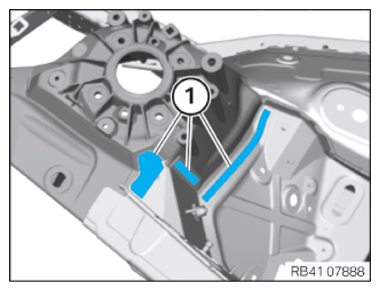

Release the rivet connectors in the areas (1).
Heat the bonded connections in the areas (1) and release them.

Courtesy of BMW OF NORTH AMERICA, INC.

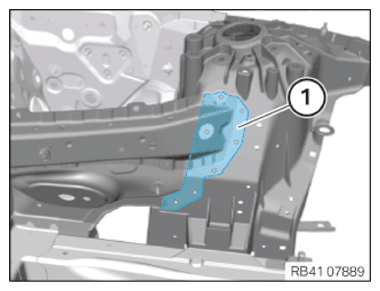

Release the rivet connectors in the area (1).
Heat the bonded connections in the area (1) and release it.

Courtesy of BMW OF NORTH AMERICA, INC.

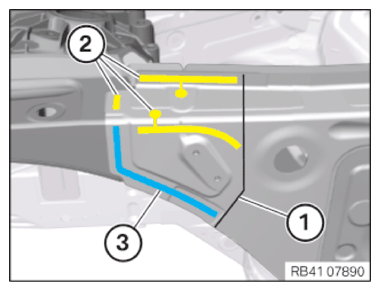

Perform the separating cut (1) as shown. Thereby disconnect only the outer panel.
Release the welded connections in the areas (2) and (3).
Heat the bonded connection in the area (3) and release it.
Remove the section of the carrier support.

Courtesy of BMW OF NORTH AMERICA, INC.
Release the welded connections in the areas (1) and remove the wheel well.

Courtesy of BMW OF NORTH AMERICA, INC.
