Supplying The New Parts Required
NOTE:
TECHNICAL INFORMATION
For additional information see: 41 00... Repair method for repair stage 2
- Observe the procedure for repair stage 2.
For additional information see: 41 00... Repair method for repair stage 2
- For information about stripping and rebuilding operations, refer to the surrounding text in the AIR. See the FRU number.
Preliminary work
Follow-up work
- Prepare the following new parts :

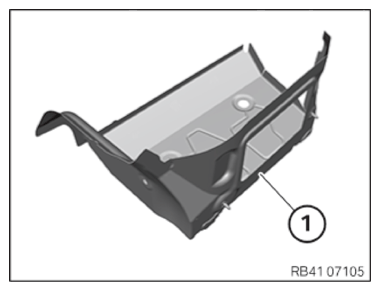

Luggage compartment floor, left (1)
NOTE:
TECHNICAL INFORMATION
- Supply the following consumables:
| Material | Quantity |
|---|---|
| Coarse thread bolt | 10 |
| Threaded weld bolt | 5 |
| Sealing compound D1 |
