Supplying The New Parts Required
Precondition
- Vehicle is secured on the straightening bench.
NOTE:
TECHNICAL INFORMATION
For additional information see: 41 00... Repair method for repair stage 3
- Observe the procedure for repair stage 3.
For additional information see: 41 00... Repair method for repair stage 3
- For information about stripping and rebuilding operations, refer to the surrounding text in the AIR. See the FRU number.
Preliminary work
Follow-up work

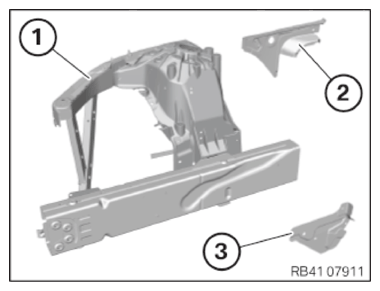

- Prepare the following new parts (see Electronic Parts Information [EPC]):
Front wheel arch (1)
Extension of the wheel well carrier support (2)
Reinforcement of engine mount, inner (3)
NOTE:
TECHNICAL INFORMATION
- Supply the following consumables:
| Material | Quantity |
|---|---|
| Adhesive K1 | 1 |
| Blind rivet N1 | 45 |
| Blind rivet N2 | 5 |
| Coarse thread bolt | 5 |
| Earth pin | 5 |
| EMC screw | 2 |
| Cleaning agent R1 | 1 |
| Cleaning agent R2 | 1 |
| Sealing compound D1 | 1 |
| Cavity protection wax remover | 1 |
