Installing the control unit for the optional equipment system (SAS)

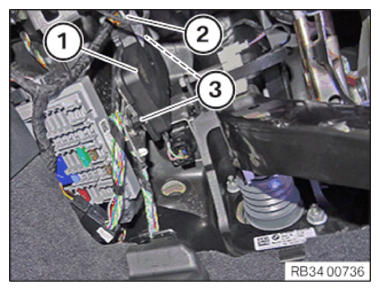

• Position the control unit for optional equipment system (SAS) (1).
• Replace the plastic nuts (3).

  Parts:  Plastic nuts

• Insert and tighten plastic nuts (3).
  TIGHTENING TORQUE SPECIFICATION



  Control unit for the optional equipment system (SAS) to the holder
  Replace plastic nut.	Tightening torque	4 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect the plug connection (2).

Follow-up work

• Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
