Brakes -- Repair (G42)
>>
34 52 Abs Control Module, Electronic Parking Brake Actuator, Stability Control System
>>
34 52 162 Removing and installing/replacing EMF actuator
>>
Check sealing ring of the EMF actuator
Check sealing ring of the EMF actuator

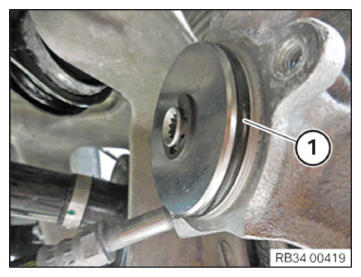

Check sealing ring (1) for damage, replace if necessary.
Apply a light coating of brake fluid on the sealing ring (1) before lining.
Courtesy of BMW OF NORTH AMERICA, INC.
