Remove rear brake pad wear sensor

Preliminary work

Refer to REMOVING THE REAR RIGHT WHEEL .

NOTE: TECHNICAL INFORMATION
The brake pad wear sensor must be replaced immediately once it has been removed because the brake pad wear sensor loses its retention capacity in its brake pad.
If a brake pad wear sensor that has already been ground has to be replaced even though the minimum brake pad thickness has not yet been reached, you must observe the following:
The new sliding contact must be filed down with a file to the same length as the sanded sliding contact.

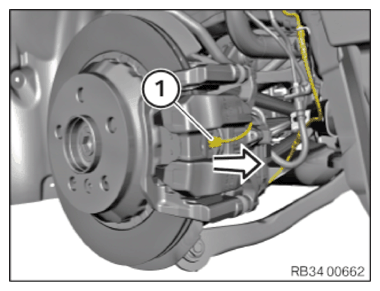

Remove brake pad wear sensor (1) from the brake pad in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

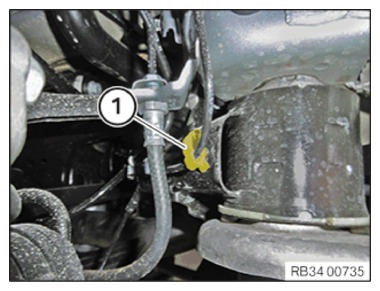

Detach the cable of the brake pad wear sensor from holder (1).

Courtesy of BMW OF NORTH AMERICA, INC.

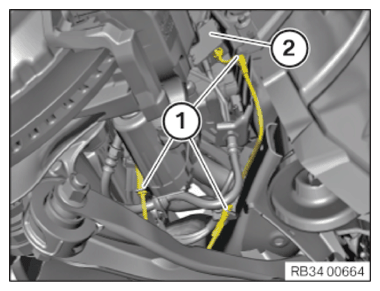

Detach the brake pad wear sensor from holders (1).
Open cover (2) and unlock and disconnect the plug connection.

Courtesy of BMW OF NORTH AMERICA, INC.
