Installing the front brake pad wear sensor

Vehicles with 17-inch low brake:

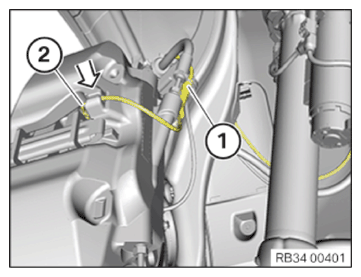

• Hook the cable of brake pad wear sensor (2) into holder (1).
• Install brake pad wear sensor (2) in the brake pad in the arrow direction and ensure that it fits correctly.

  Courtesy of BMW OF NORTH AMERICA, INC.

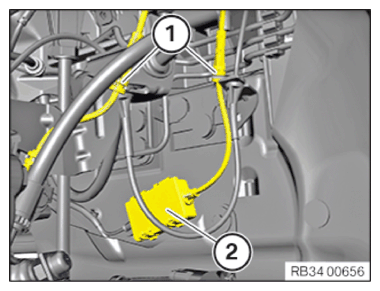

• Hook the cable of the brake pad wear sensor into holders (1).
• Connect connectors and lock.
• Close sealing cap (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

Vehicles with high brake:

• Hook the cable of the brake pad wear sensor into the holder (1).
• Install brake pad wear sensor (2) in the brake pad in the arrow direction and ensure that it fits correctly.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Hook the cable of the brake pad wear sensor into the holder (1).
• Connect connectors and lock.
• Close sealing cap (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to ATTACHING THE FRONT LEFT WHEEL .
