Install brake booster

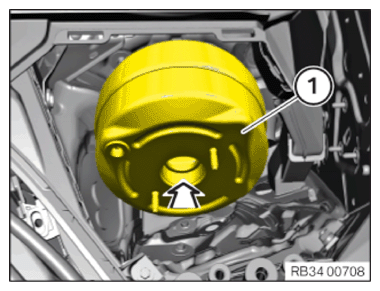

• Guide the brake booster (1) into the firewall.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install the nuts (1) and tighten.
• Replace nuts.

  Parts:  Nuts

  TIGHTENING TORQUE SPECIFICATION



  Brake booster to pedal assembly console
  Replace nuts.
  M8 Retighten 1x on brake booster after 10 min.	tightening torque	22 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Lock brake pedal (1) in place in the arrow direction with the brake booster.

  Ensure that the brake pedal is completely locked with the brake booster!

  Courtesy of BMW OF NORTH AMERICA, INC.

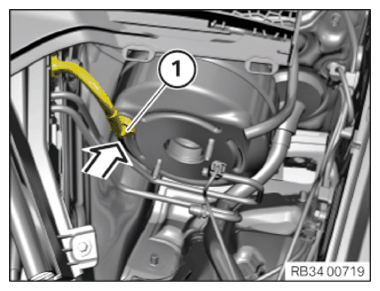

• Install the check valve (1) in the brake booster in the arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

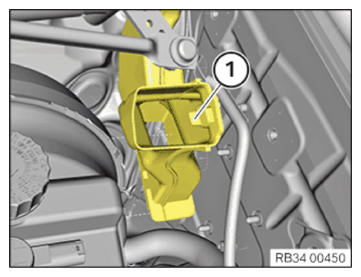

• Install air duct (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
• Refer to INSTALLING THE TANDEM BRAKE MASTER CYLINDER .
• Refer to INSTALLING THE EXPANSION TANK .
• Refer to CONNECTING THE BLEEDER UNIT FOR THE BRAKE FLUID .
• Refer to FLUSH AND VENTING THE REAR AXLE BRAKE CIRCUIT .
• Refer to FLUSHING AND BLEEDING THE FRONT AXLE BRAKE CIRCUIT .
• Refer to FLUSH AND BLEEDING THE FRONT AXLE BRAKE CIRCUIT (VEHICLES WITH HIGH BRAKE) .
• Refer to DISCONNECTING THE BLEEDER UNIT FOR THE BRAKE FLUID .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
