Installing rear brake hose

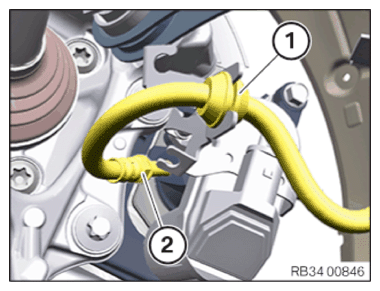

• Fit and tighten brake hose (2) on brake caliper.
  TIGHTENING TORQUE SPECIFICATION



  Brake hose to brake caliper, rear
  tightening torque	24 Nm

• Hook the brake hose into holder (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

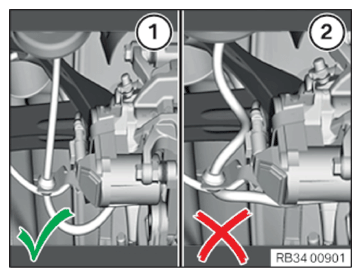

• Figure 1: Brake hose installed correctly
• Figure 2: Brake hose twisted, Incorrect assembly!

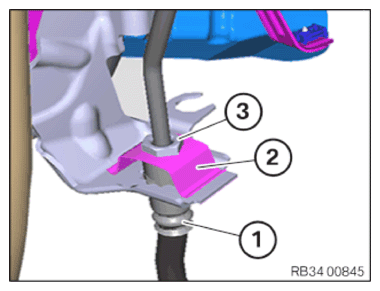

• Insert the brake hose (1) in the holder on the body side.
• Ensure a correct fit of the retaining spring (2)!
• Attach and tighten the union screw (3).
  TIGHTENING TORQUE SPECIFICATION



  Brake pipe screw connection/Union screws
  tightening torque	17 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to REMOVING THE BRAKE PEDAL TENSIONER .
• Refer to INSTALLING REAR WHEEL ON THE LEFT AND RIGHT .
• Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
• Refer to CONNECTING THE BLEEDER UNIT FOR THE BRAKE FLUID .
• Refer to FLUSH AND VENTING THE REAR AXLE BRAKE CIRCUIT .
• Refer to DISCONNECTING THE BLEEDER UNIT FOR THE BRAKE FLUID .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
