Removing the tandem brake master cylinder

Preliminary work

• Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
• Refer to REMOVING THE EXPANSION TANK .

• (1) Unfasten brake lines.

  Courtesy of BMW OF NORTH AMERICA, INC.

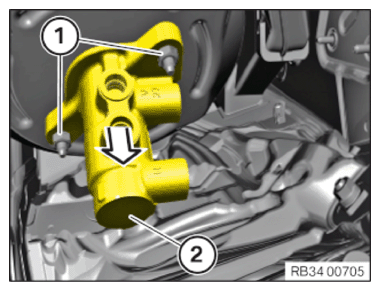

• Loosen nuts (1) and remove tandem brake master cylinder (2).

  Courtesy of BMW OF NORTH AMERICA, INC.
