Removing the brake fluid level switch

Preliminary work

• Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .

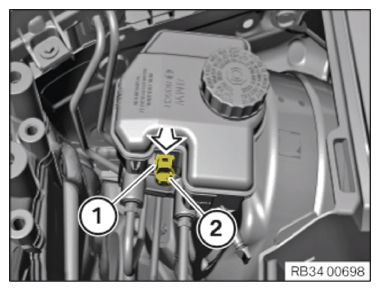

• Disconnect plug connection (1).
• Detach the cable from the holder (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Press snap-in lug (1) and remove brake fluid level switch (2) in the arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.
