Installing the brake fluid level switch

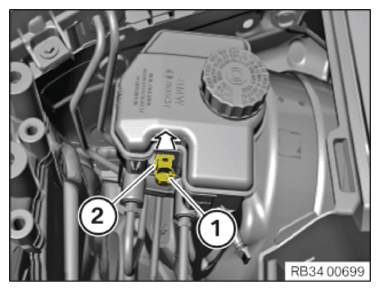

• Install brake fluid level switch (1) in the expansion tank in the arrow direction.

  The snap-in lug (2) must be correctly locked.

  Courtesy of BMW OF NORTH AMERICA, INC.

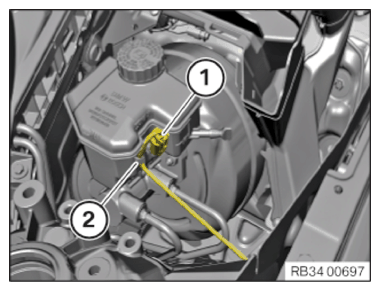

• Connect connector (1).
• Hook the cable into holder (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
