Removing the storage tray

Preliminary work

• Refer to REMOVING REAR SEAT BENCH .

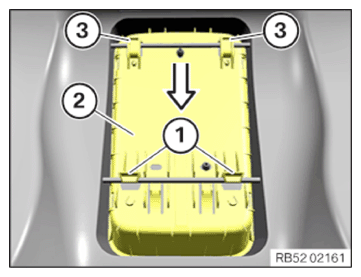

• Unclip the clips (1) of the storage tray (2).
• Feed out the storage tray (2) in arrow direction from the guide lugs (3) and remove it.
