52 26 Rear Seat
>>
52 26 210 Removing and installing or replacing left or right head restraint for rear seat
>>
Installing the head restraint
Installing the head restraint

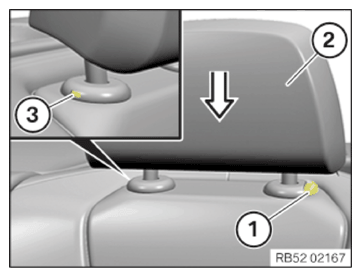

Correctly position the head restraint (2).
Keep lock (1) and the covered lock (3) pressed.
Press down the head restraint (2) carefully in the arrow direction.
Press the lock (1) and move the head restraint (2) downwards up to the end position at the same time in the arrow direction.
