Remove the right rear seat backrest

Preliminary work

• Refer to REMOVING REAR SEAT BENCH .
• Refer to REMOVING LEFT AND RIGHT BACKREST SIDE SECTION .
• Refer to REMOVING LUGGAGE COMPARTMENT FLOOR COVERING .

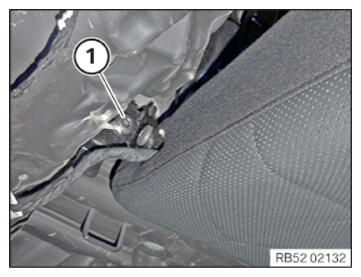

• Loosen screw (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

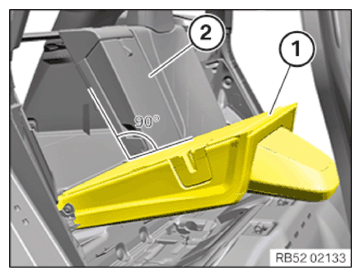

• Position the right rear seat backrest (1) at a 90° angle to the center rear seat backrest (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

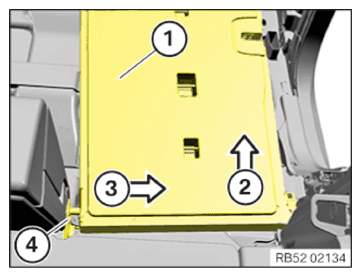

• Move the right rear seat backrest (1) carefully in arrow direction (2) and guide it out of central mount (4) in arrow direction (3).
• Remove the right rear seat backrest (1).

Courtesy of BMW OF NORTH AMERICA, INC.
