Install the rear seat backrest

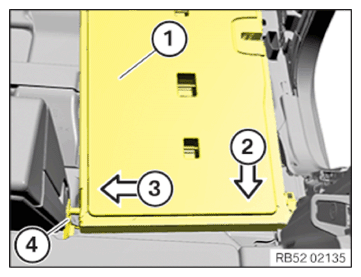

• Position the right rear seat backrest (1) at a 90° angle to the center rear seat backrest (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Guide the right rear seat backrest (1) carefully into central mount (4) in arrow direction (3).
• Move the right rear seat backrest (1) in arrow direction (2) to the end position.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the screw (1).

  Parts:  Screws

• Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
• Refer to INSTALLING THE LEFT AND RIGHT BACKREST SIDE SECTION .
• Refer to INSTALLING THE REAR SEAT .
