Removing the center rear seat backrest

Preliminary work

• Refer to REMOVING REAR SEAT BENCH .
• Refer to REMOVING LEFT AND RIGHT BACKREST SIDE SECTION .
• Refer to REMOVING THE RIGHT REAR SEAT BACKREST .
• Refer to REMOVING LUGGAGE COMPARTMENT FLOOR COVERING .
• Refer to REMOVING THE LEFT AND CENTER REAR SEAT BACKREST .

Precondition

The center rear seat backrest is unlocked.

• Guide out and remove central mount (1) of the center rear seat backrest (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

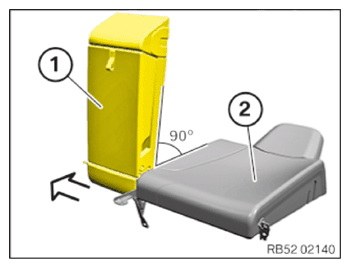

• Position the center rear seat backrest (1) at a 90° angle to the left rear seat backrest (2).
• Guide out and remove the center rear seat backrest (1) from the left rear seat backrest (2) in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.
