Remove the backrest cover from front seat-backrest
Preliminary work
- Refer to REMOVING DRIVER'S SEAT .
- Refer to FOR CONTINUING WORK ON THE FRONT SEAT: MOUNTING THE FRONT SEAT ON THE UNIVERSAL SEAT MOUNTING AND CONNECTING WITH THE WIRING HARNESS IF NECESSARY .
- Refer to REMOVING THE REAR PANEL ON THE FRONT SEAT BACKREST .
- Refer to REMOVING THE HEAD RESTRAINT .
- Refer to REMOVING OUTER COVER ON FRONT SEAT .
- Refer to REMOVING INNER COVER FROM THE FRONT SEAT .
- Refer to REMOVING THE BACKREST COVER WITH THE CUSHION .
- Refer to REMOVING THE DRIVE MOTOR FOR THE HEADREST HEIGHT ADJUSTER .

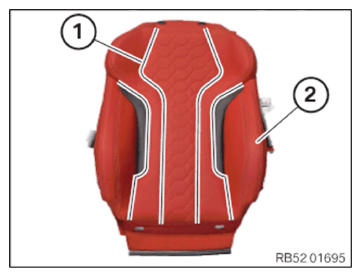

- Loosen all clamp on the trim wires (1).
- Remove the backrest cover (2) from the upholstery.
- Completely remove clamps from the backrest cover (2) and the cushion.
