Removing the forward/back seat adjustment drive

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components .
Scratches, surface damage .

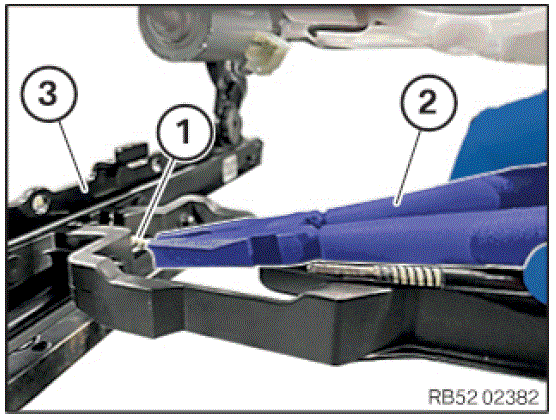

Unclip the flexible shaft (1) from the holder (3) as shown using a suitable tool (2).

Courtesy of BMW OF NORTH AMERICA, INC.

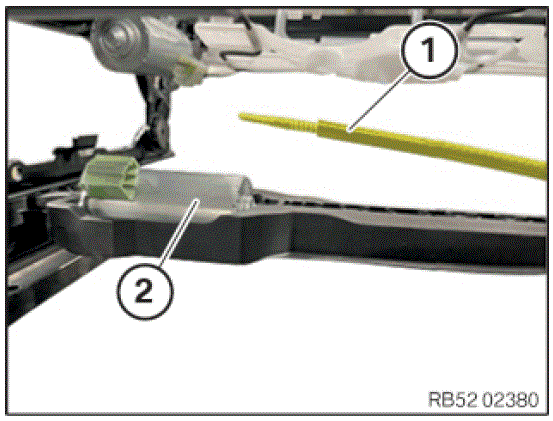

Carefully maneuver the flexible shaft (1) out of the forward/back seat adjustment drive (2).

Courtesy of BMW OF NORTH AMERICA, INC.

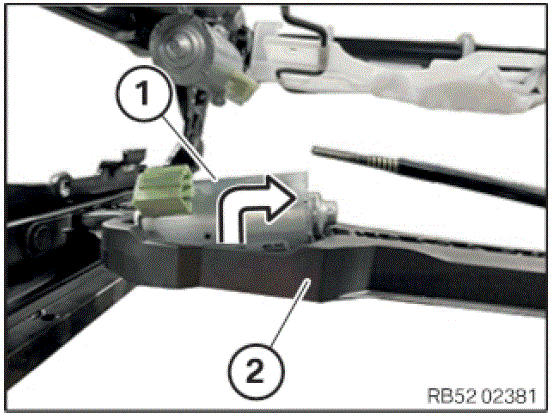

Carefully unclip the forward/back seat adjustment drive (1) from the holder (2) in the arrow direction as shown and maneuver it out.

Courtesy of BMW OF NORTH AMERICA, INC.

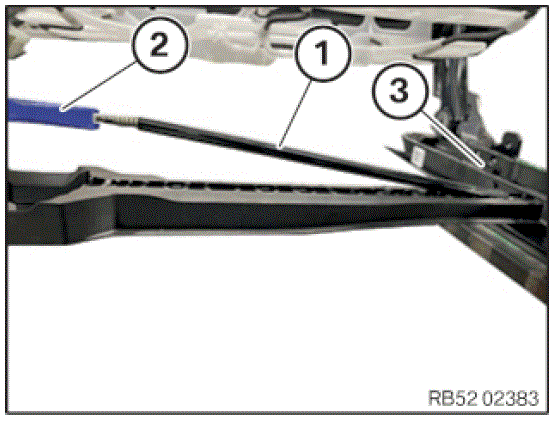

Carefully maneuver the flexible shaft (1) out of the seat rail (3) using a suitable tool (2).

Courtesy of BMW OF NORTH AMERICA, INC.

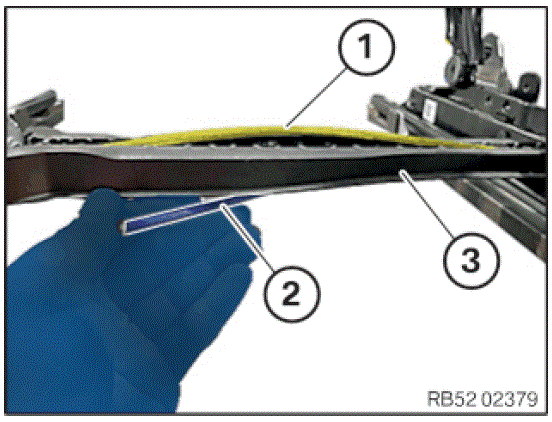

Carefully remove the flexible shaft (1) from the seat rail (3) using a suitable tool (2).

Courtesy of BMW OF NORTH AMERICA, INC.
