Install forward/back seat adjustment drive

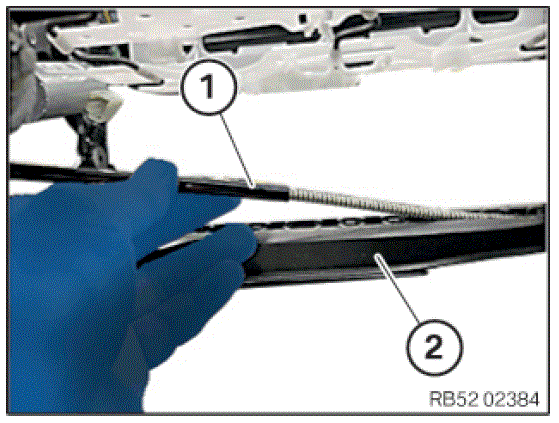

- Position the flexible shaft (1) in the holder (2) as shown.

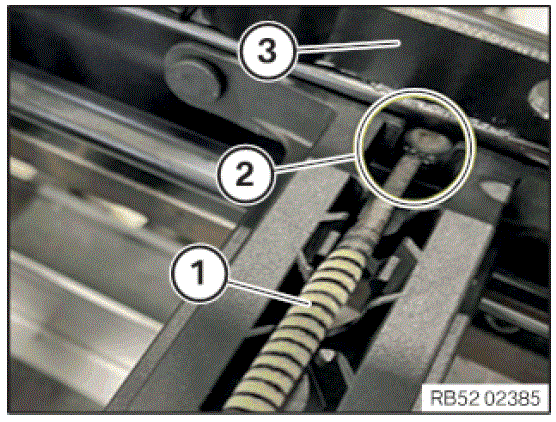

- Maneuver flexible shaft (1) correctly into the seat rail (3) at the marked point (2).
The flexible shaft must be inserted at least 14 mm into the seat rail.

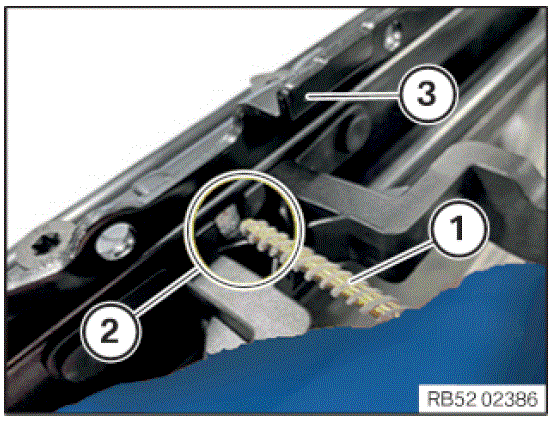

- Maneuver the flexible shaft (1) correctly into the seat rail (3) at the marked point (2).
The flexible shaft must be inserted at least 14 mm into the seat rail.

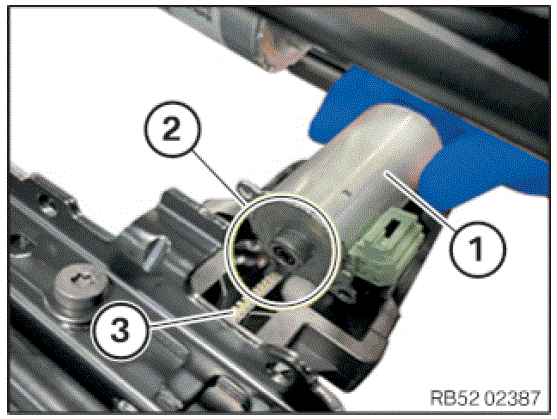

- Correctly connect forward/back seat adjustment drive (1) to the flexible shaft (3) at the marked point (2).

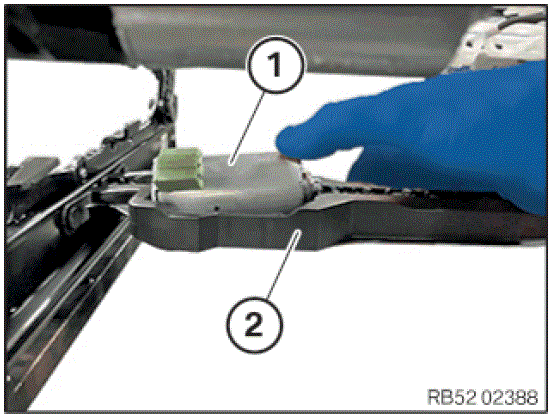

- Clip forward/back seat adjustment drive (1) correctly into the holder (2).

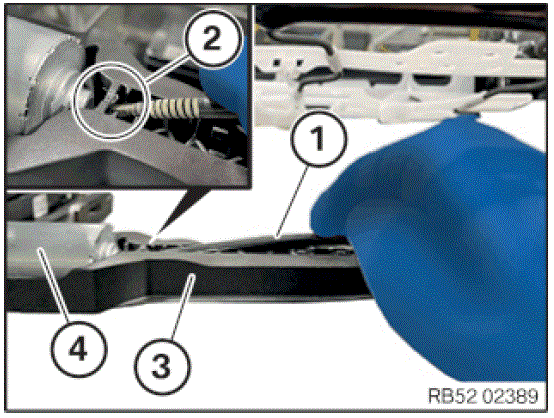

- Maneuver the flexible shaft (1) under the holder (3) at the marked point (2) and connect it correctly with the forward/back seat adjustment drive (4).
- Clip the flexible shaft (1) into the holder (3).
