52 13 Front Head Restraint, Backrest Lever
>>
52 13 031 Removing and attaching/replacing lever for backrest adjustment on front seat, left or right
>>
Installing the lever for the backrest angle adjustment
Installing the lever for the backrest angle adjustment

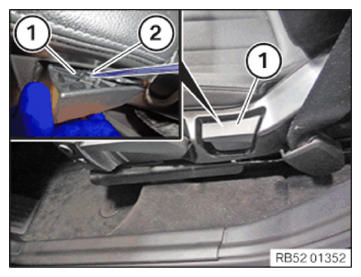

Insert the handle for the backrest angle adjustment (1) from the top.
Check the retaining lug (2) for correct seating.
Courtesy of BMW OF NORTH AMERICA, INC.
