Remounting the LED module for the daytime driving lights

Removing the LED module for the daytime driving lights

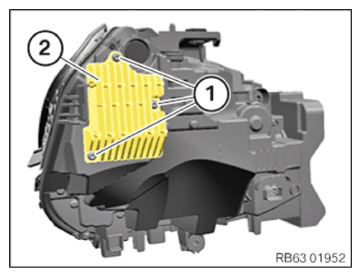

• Loosen screws (1)  .
• Guide out LED module (2)  and lift it up a little.
• Unlock associated plug connection and disconnect.
• Remove LED module (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the LED module for the daytime driving lights

• Check the seal of the LED module for damage, replace if necessary.
• Connect corresponding connectors and lock them.
• Position the LED module (2)  on the headlight.
• Tighten down screws (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.
