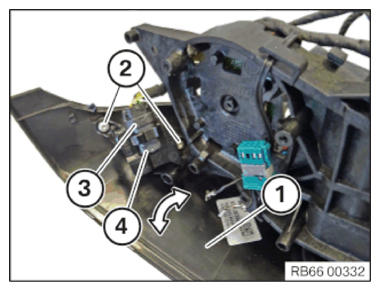

Installing the top view camera

• Install and correctly position the top view camera (4).
• Connect connectors (3) and lock.
• Tighten down screws (2).
  TIGHTENING TORQUES SPECIFICATION



  Top view camera to vehicle exterior mirror
  screw	Tightening torque	0.85 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

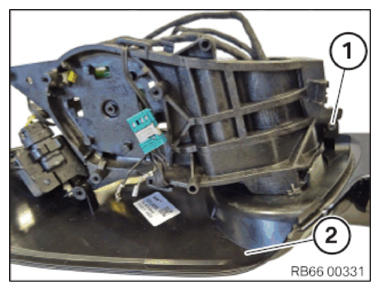

• Push lower section of the mirror housing (1) in the direction of arrow to the front and position it correctly.
• Tighten screw (1) on the lower section of the mirror housing (2).
  TIGHTENING TORQUES SPECIFICATION



  Housing to vehicle exterior mirror
  tightening torque	0.85 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE RETAINING RING ON THE OUTSIDE REARVIEW MIRROR .
• Refer to INSTALLING THE EXTERIOR MIRROR ADJUSTMENT DRIVE .
• Refer to INSTALLING THE PROTECTIVE CAP OF THE EXTERIOR VEHICLE MIRROR .
• Refer to INSTALLING THE MIRROR GLASS .
