Install the rear ultrasonic sensor

• Check decoupling ring (1) for damage.

  The decoupling ring (1) must not be missing.

  Courtesy of BMW OF NORTH AMERICA, INC.

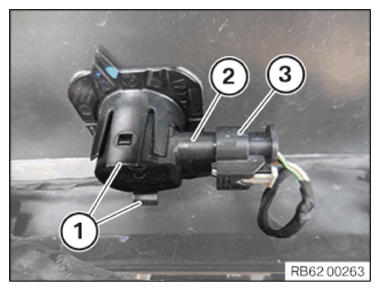

• Position the ultrasonic sensor (2) correctly and engage it in the detents (1).
• Connect connectors (3) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE REAR BUMPER COVER .
• Refer to INSTALLING TAIL LIGHT ON LEFT AND RIGHT SIDE PANEL .
• Refer to INSTALLING THE TRIM IN THE WATER CHANNEL ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE LEFT AND RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL (PARTIALLY REMOVED) .
• Refer to INSTALLING LOADING EDGE TRIM .
• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
